Round Disaster Shelter
One self-contained, disaster shelter with the following components and features:

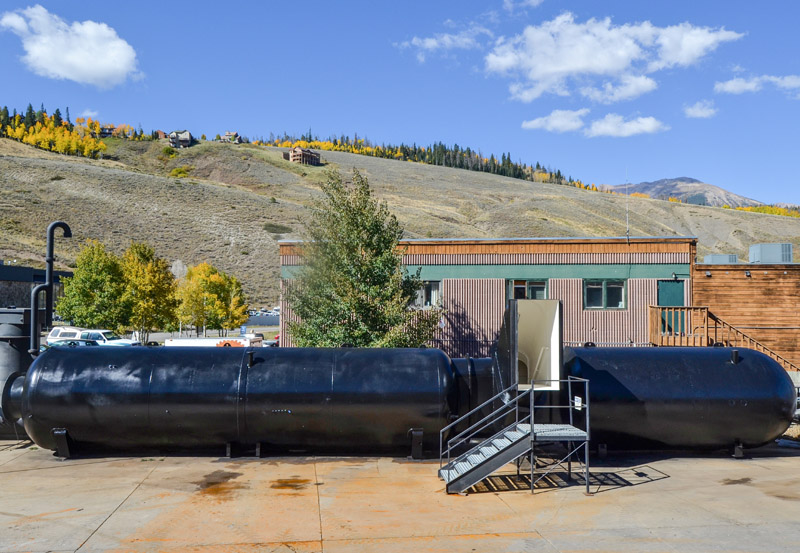

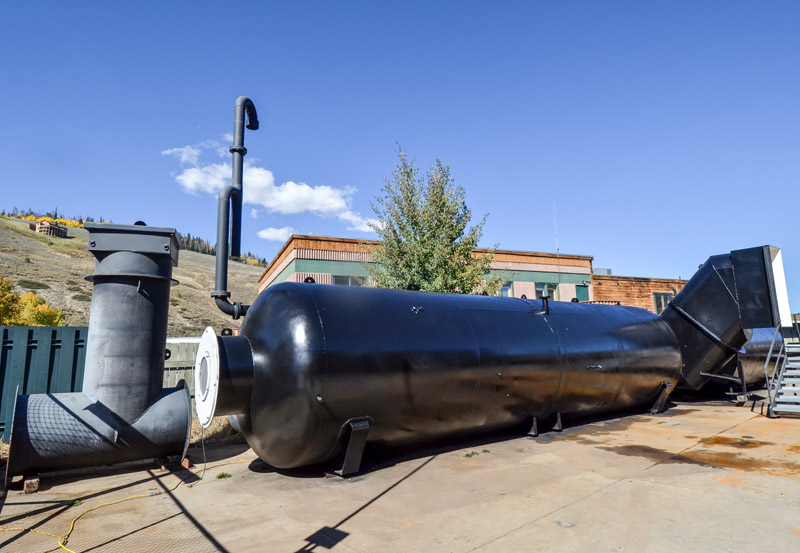

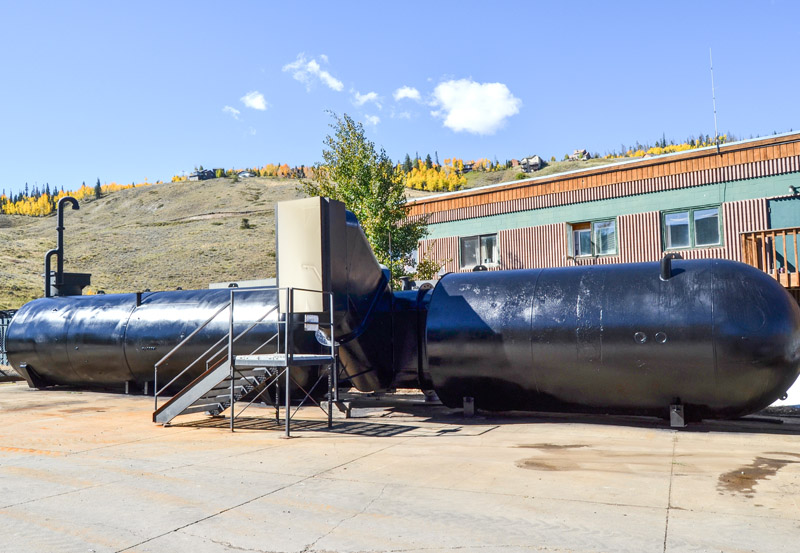

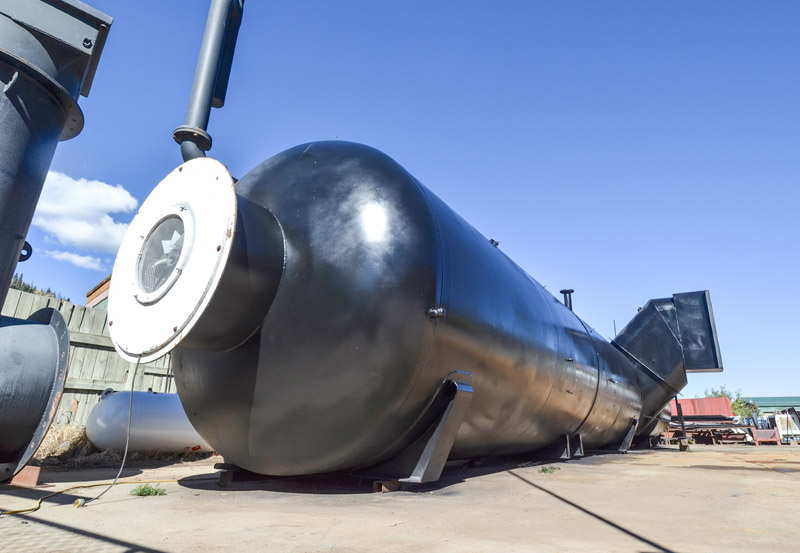

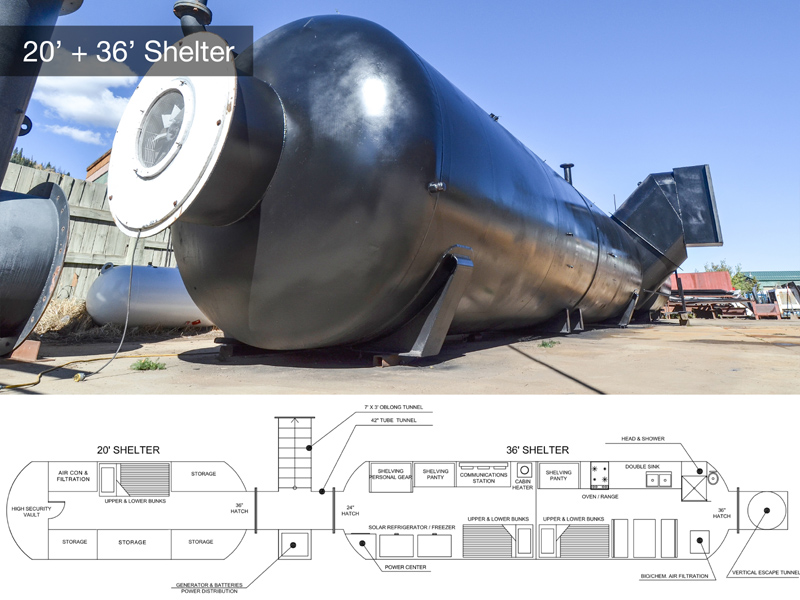

Main tank sections (1) 36’x8’9” 3/8" (1) 20’x9’ 3/4” Steel

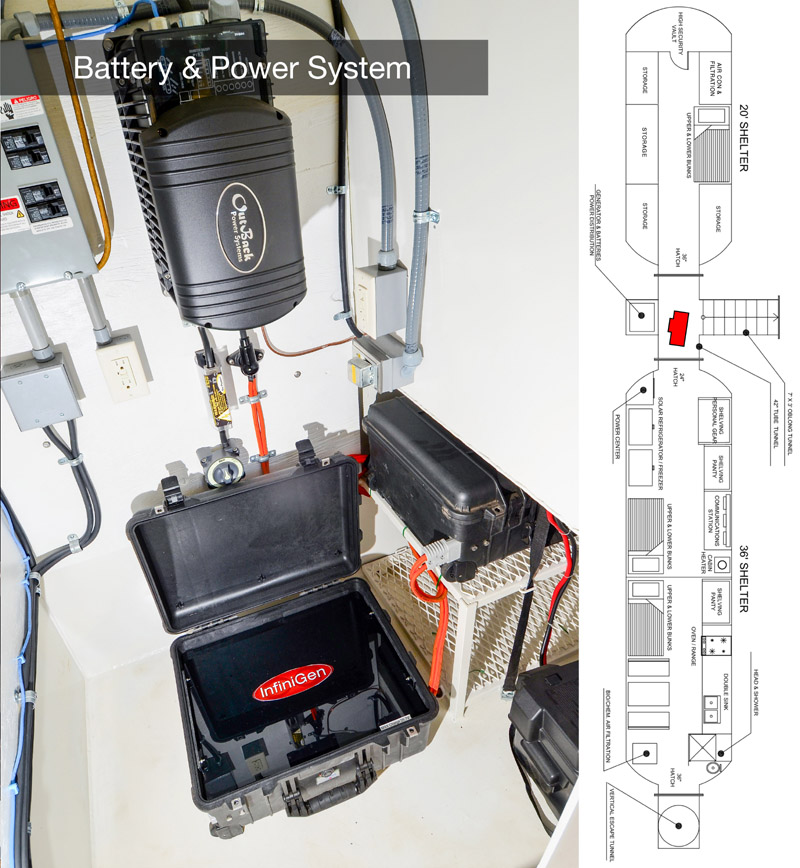

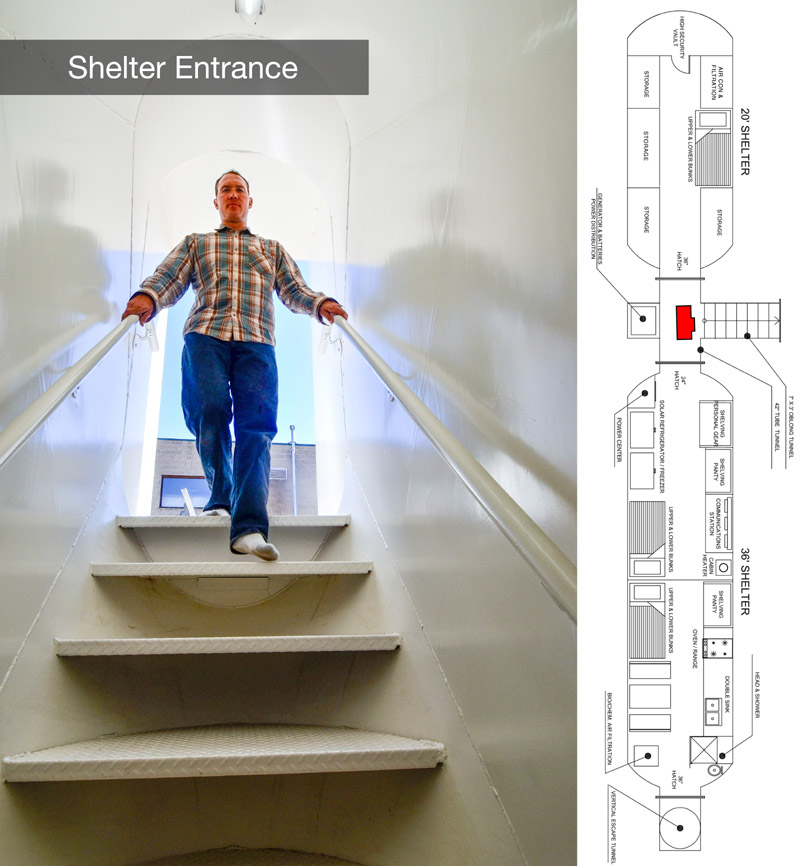

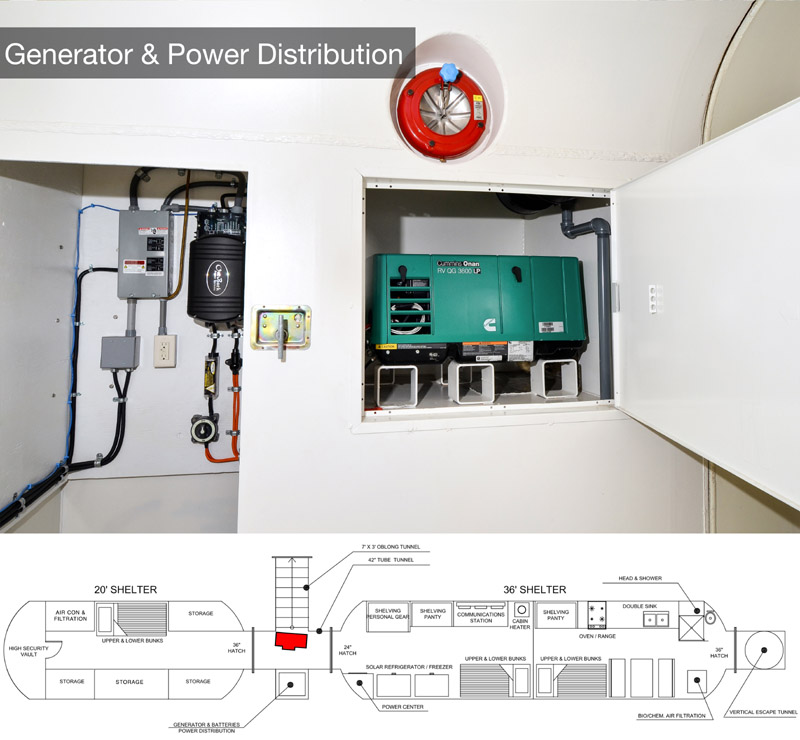

Stairway “T” corridor connector from basement to shelter “T” connector also includes a power distribution vault with a 3.6 Onan L.P. generator, service hatch and battery bank vault, Outback VFX 3524 inverter
Lighting and receptacles

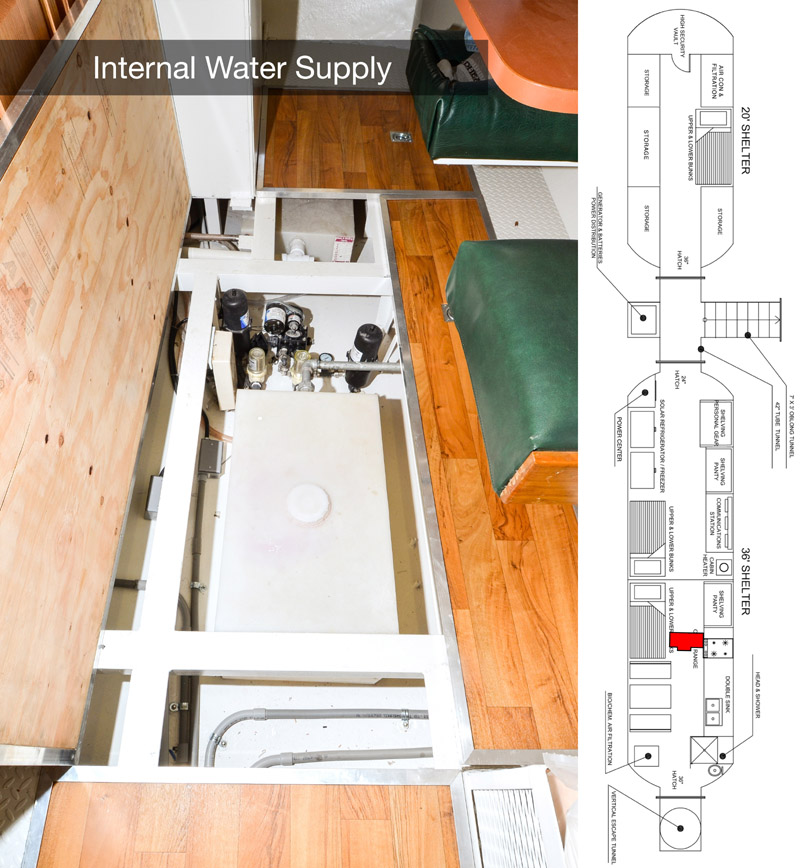

- Internal 12V pressurized water system
- Closed sanitation system w/ 24v macerator ejection system
- Internal grey water supply

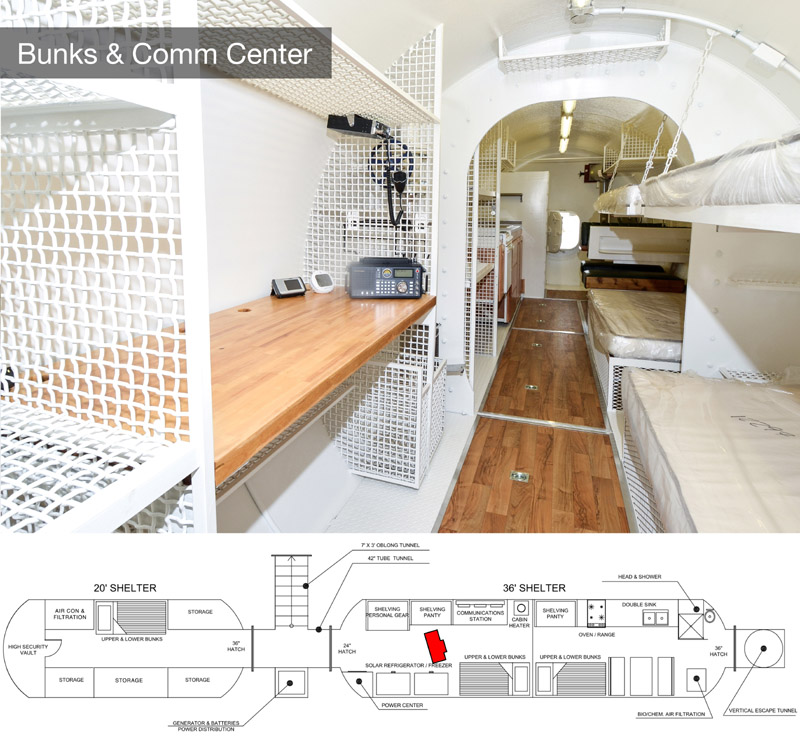

- Communication station with thru ports for cabling
- Commuications package CB and Shortwave

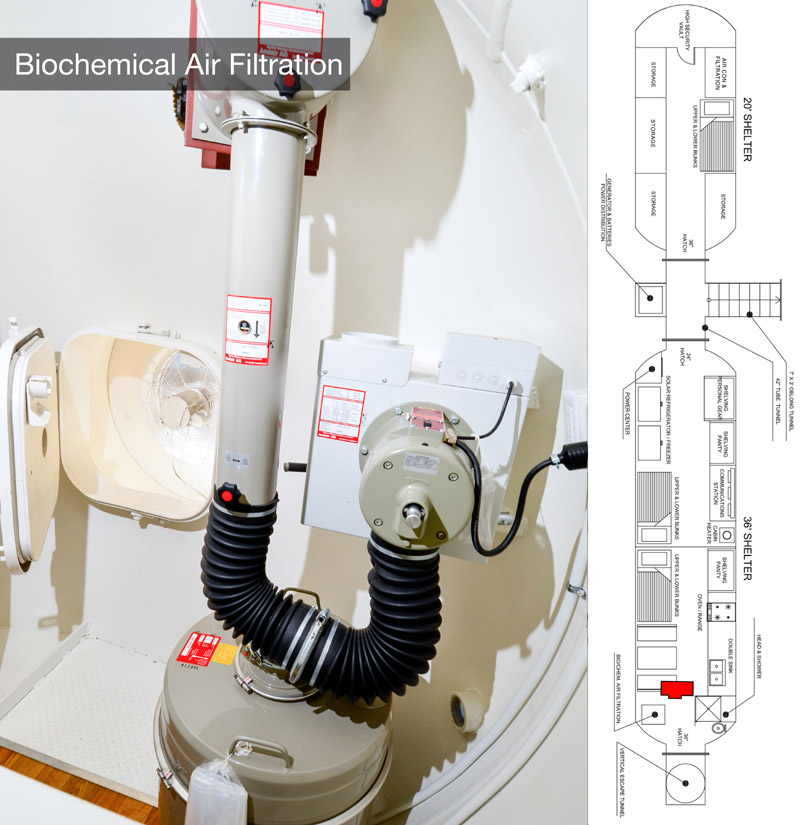

- VA 150 air filtration system (HEPA and NBC) Secondary Safe Cell air filtration system

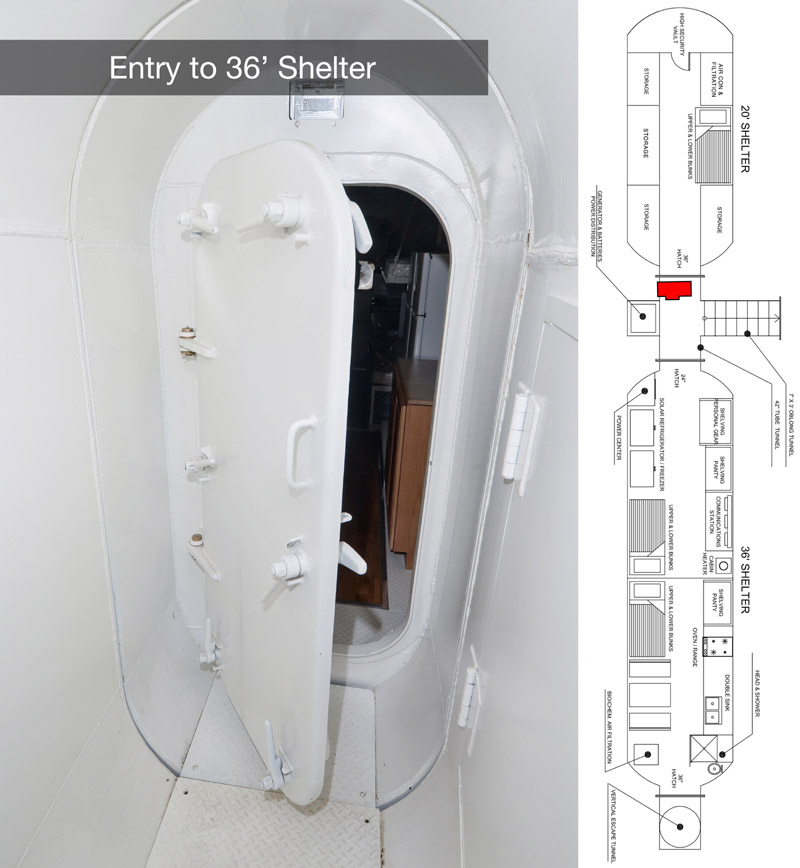

- (1) Emergency egress man-way with a surface hatch and security locks

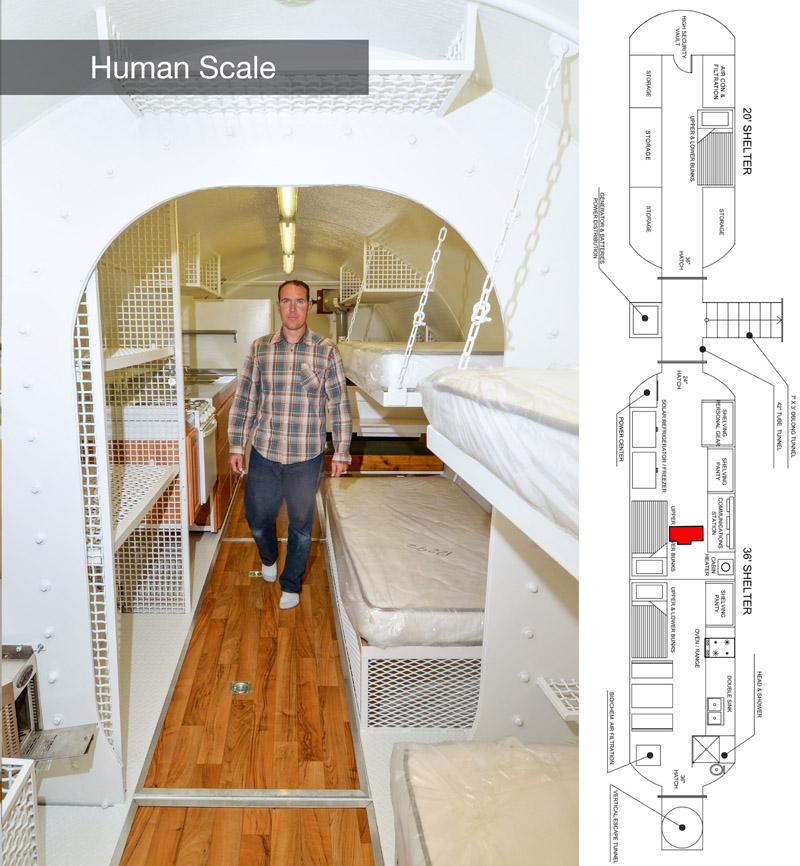

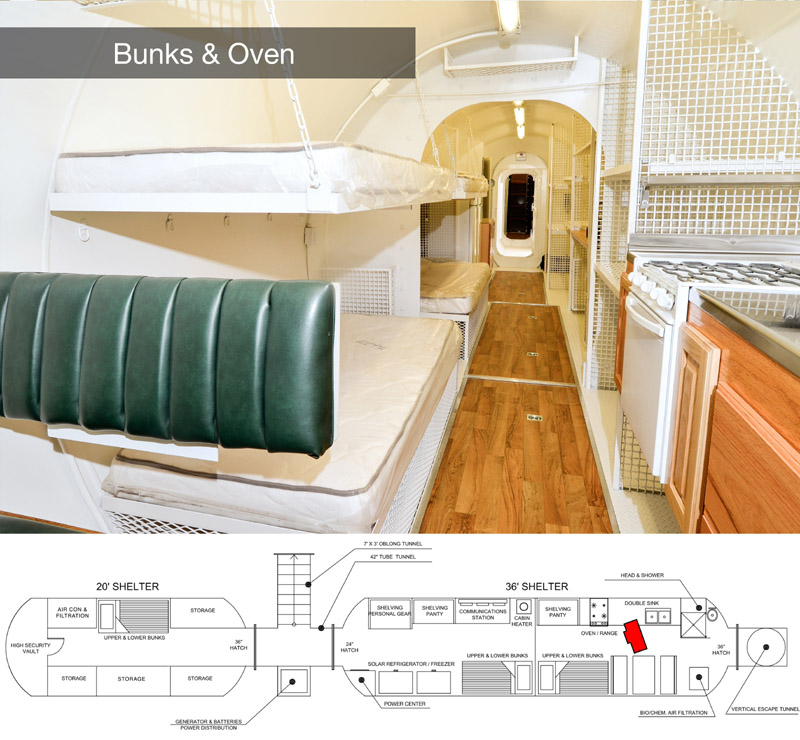

- Sleeping bunks for six w/mattresses
- Schedule 80 air intakes and exhaust shafts protected with 1 bar rated blast valves
- (1) Gen set exhaust and cabin heater exhaust shaft
- (2) Interior stainless steel reinforced marine hatches with viewing ports

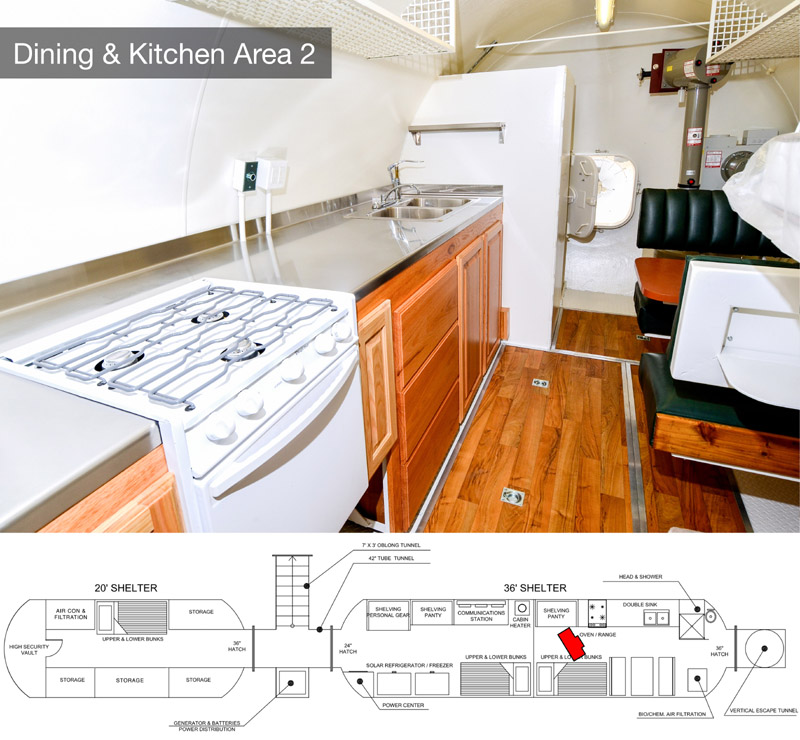

- Stainless steel kitchen counter top
- Kitchen sink with pressurized water and manual pump faucets
- Magic Chef (LPG) range

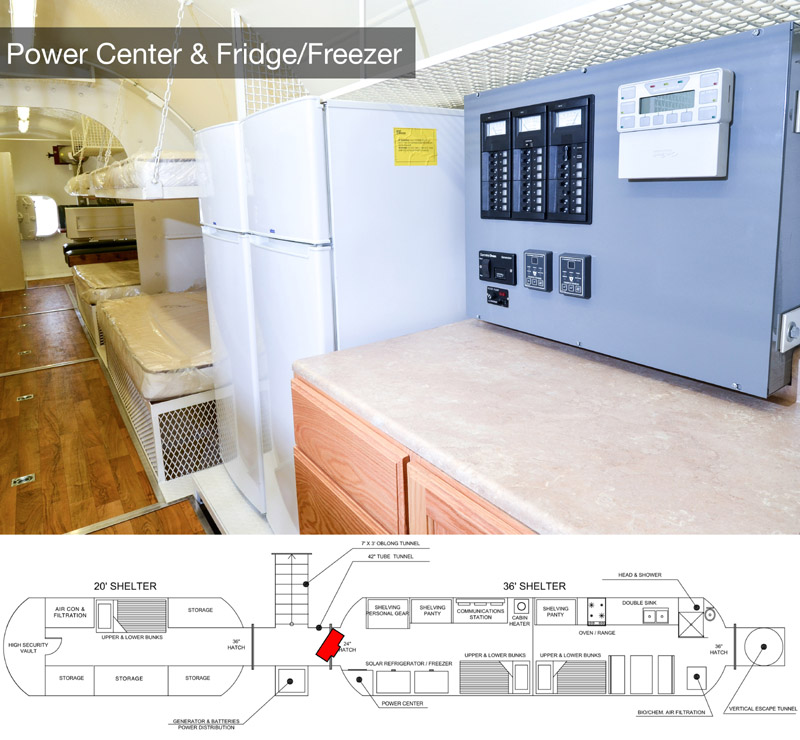

- 2 – 12v stand up freezer and fridge units
- Dinette booth with table

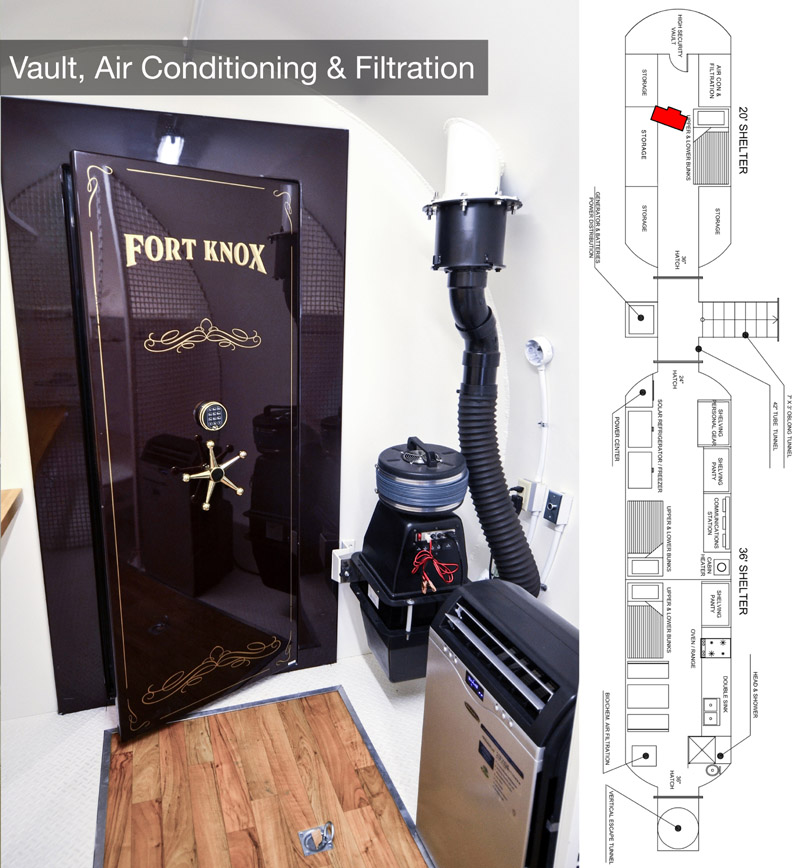

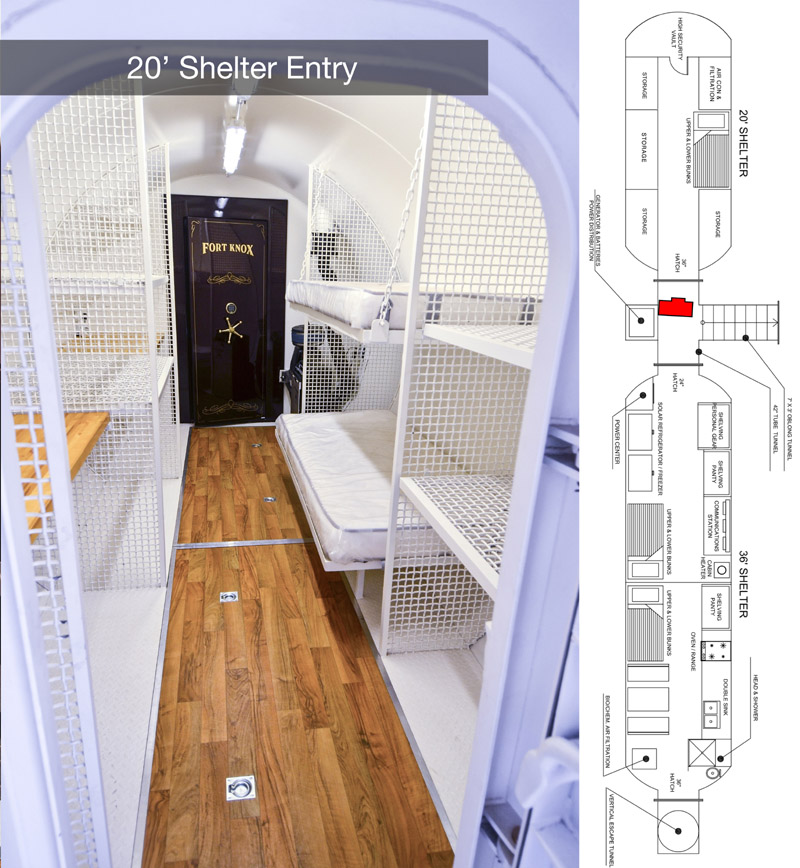

- Security vaults to store valuables with tamper proof locks and lighting

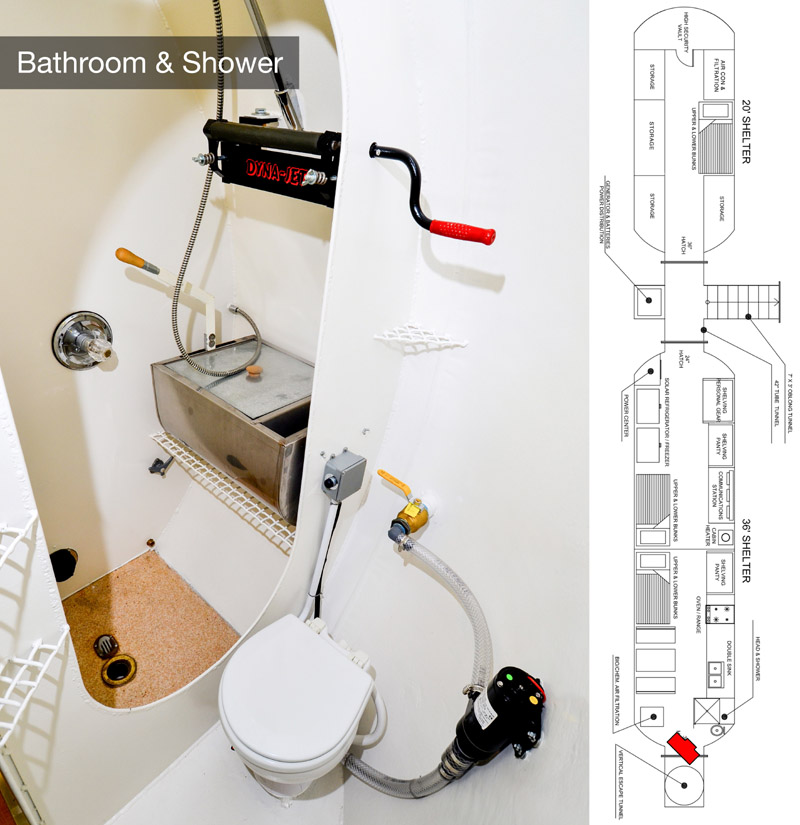

- Bathroom with shower, Wilcox marine head, clothes washer/ringer

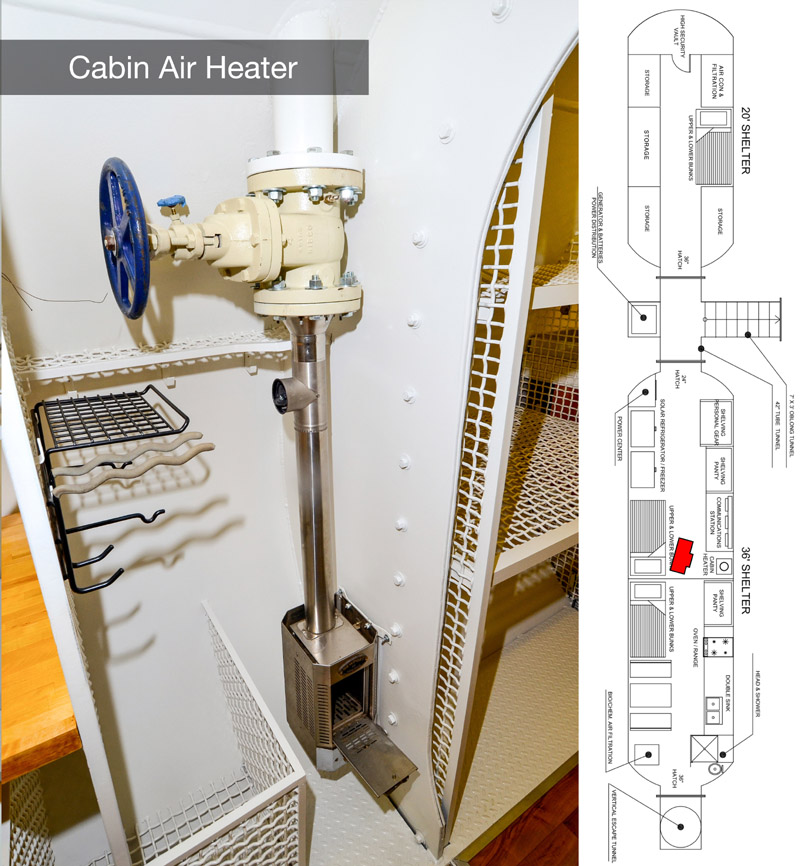

- Stainless steel Newport cabin heater
- Steel Shelve storage for gear and food

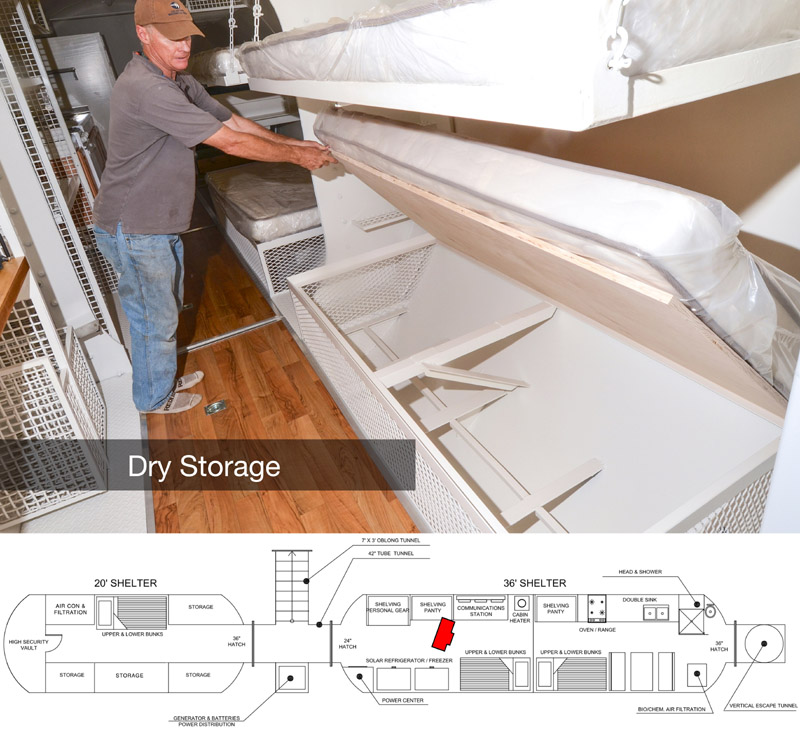

- Ventilated Dry Storage below floor and lower bunks
- External propane, water & sanitation tanks not included however plumbing connections are stubbed for external plumbing.
